10BBL Pub Brewery System
FOB Reference Price:Get Latest Price
- Inner stretching membrane and PE paper and outer steel
- frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with - plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged - with wooden box.
3. All items wrapped with soft package for protection.
HULK Beer Brewing Equipment
10BBL 1000L Pub Brewery Systemt craft beer brewing equipment for sale
HULK 1000L Mircrobrewery equipment craft beer brewing jinan beer equipment for sale is specially customized for users who want to brew 1,000L per batch and 1~2 batches per day. We plan and design complete medium-sized breweries, all systems can be customized designed with the customer’s input for a defined process.

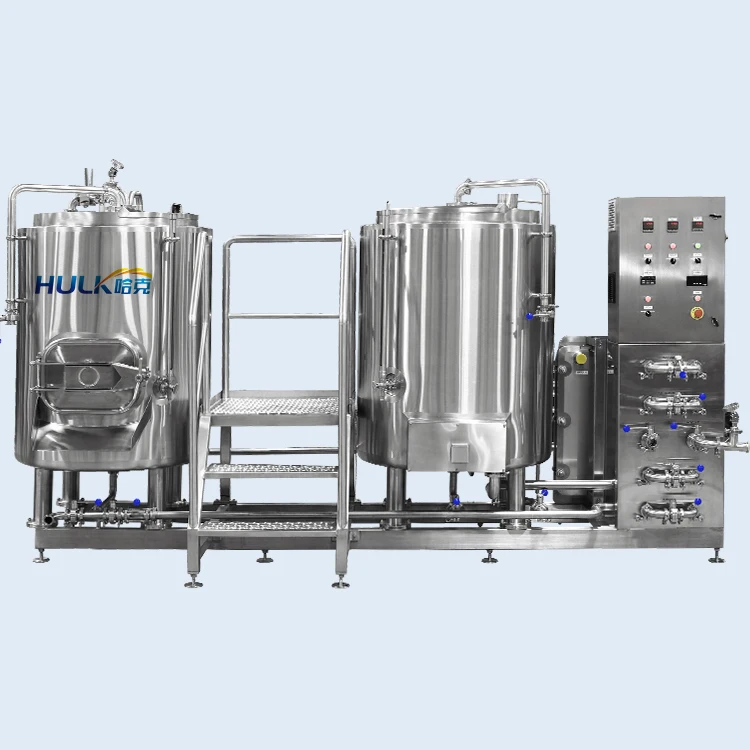

The Best Solution for Medium-sized BreweriesA whole set of 1,000L Beer Brewing Equipment will include components as below, this article will mainly introduce our 2-Vessel Brewhouse for you.
| 1. 500kg/h Crushing System | 2. 1,000L Mashing system + 2,000L Hot Water Tank |
| 3. 1,000L Fermentation Tank & BBT | 4. PID Control System (Optional: PLC) |
| 5. 3,000L Glycol Cooling System | 6. 100L CIP System |
For more details, please refer to “Relative Products” or contact HULK Guys directly.
No. | Description | No. | Description |
1 | Mash + Lauter Tank | 9 | Drain Pipe |
2 | Kettle + Whirlpool Tank | 10 | Wort Pump |
3 | VFD Motor&Reducer | 11 | Wort Balance Tank |
4 | Top Manway | 12 | Outdoor Condensing Unit |
5 | Sight Glass | 13 | Level Tube |
6 | CIP Arm | 14 | Plate Heat Exchanger |
7 | Vinesse Door | 15 | Yeast Adding Tank |
8 | Wort collection&Back flushing pipelines | 16 | Platform with stairs and guardrails |
– Provided with installed pipes, including valves and sensors
– Integrated pump system
– CIP system: separated CIP for tanks to prevent cross product interference – Customized PID / PLC( HMI touch screen,optional) Control System – Staircases and platform combine vessels in a compact unit, sectional construction of the walk on surface ensures protection against slipping – Whole Brewhouse system installed on a complete platform, easy moving, loading&unloading, turnkey solution. Multi-angle 3d design: |  |
Specification | Description |
Product Name | 1,000L 2 Vessel Beer Brewing Equipment Brewhouse |
Beer Output Capacity | 1,000L per batch, 1~2 batches per day |
Floor Area | 3.50m(L) x 2.08m(W) x 2.7m (H) |
Brewing Beer Types | Ale, Lager, DIY taste Craft beer, pilot beer, etc. |
Applicable Voltage | 110V/ 220V /380V/ 415V (adjustable) |
Power Consuming | 10 ~ 72 kw |
Heating Method | Steam Heating, Electric Elements Heating, Direct Fire Heating, customized. |
Every Beer Brewing Equipment details is strictly in accordance with the requirements of the drawings, high standards require ourselves to complete the production process with high efficiency. |  |  |
Cleaning Ball | Heating Exchanger | Wort Pump |
 |  |  |
Hop Filler | Oxygen Filling Device | Whirlpool |
 |  |  |
Raker | Grain out door | Sight Glass |
 |  |  |
Sparging Spare Ring | Balance Tank | Yearst Adding Tank |
HULK – Stainless steel 300l micro beer brewing brewhouse
Product information
System | Mark |
malt milling system
| malt miller machine
|
Mash system
| Easy clean and detachable sparging spray ring CIP sparing ball Side mounted grain outdoor with grain chute Balance tank Thermometer Vinasse door Indoor/ outdoor condesate system False bottom Glass sight manhole Professional Tangential whirlpool inlet design. Oxygen filling device Plate heating exchanger Yeast adding tank |
Fermenting system
| Top manhole sampling Safety valve Cleaning ball |
Cooling system
| Cooling system Ice water tank
|
CIP cleaning system
| disinfection tank & alkali tank &cleaning pump etc.
|
Controller
| Control system, we have PLC automatic and semi-automatic PID control system
|
Kegging system
| kegging system ( keg washer and keg filler machine), The brand is Siemens. |
Mashing system – Stainless steel brewhouse
3D drawing
About the 300l beer brewing equipment, we don’t match raker with VFD. We can use thestainless steel stiring rod to process mashing.
Fermenting system – Stainless steel brewhouse
| Stainless steel 300l micro beer brewing brewhouse | |
| Confugurations | Top manhole sampling Safety valve Cleaning ball |
Control system – Stainless steel brewhouse
PID control system & PLC control system
Usually, we would match PID control system to control complete 300l micro brewing system.
Cooling system – Stainless steel brewhouse
About the 300l beer brewing equipment, according to our experience and our customer’s preferences, we will match 600l glycol water tank, 1 pieces 3P chiller and pump and so on.
CIP system – Stainless steel brewhouse
Product Details
Polishing and welding
Company Information
Our certification
Our Services
Pre-service:
a.) Free consultation service before, during, and after sales; |
b.) Project planning and design services; |
c.) Free debugging instruction of equipment until everything is functional; |
d.) Management of equipments’ long distance shipping from seller’s factory to named port or station by buyer; |
e.) Training of equipment maintenance and operating personally; |
f.) New production techniques; |
g.) Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free; |
Installation:

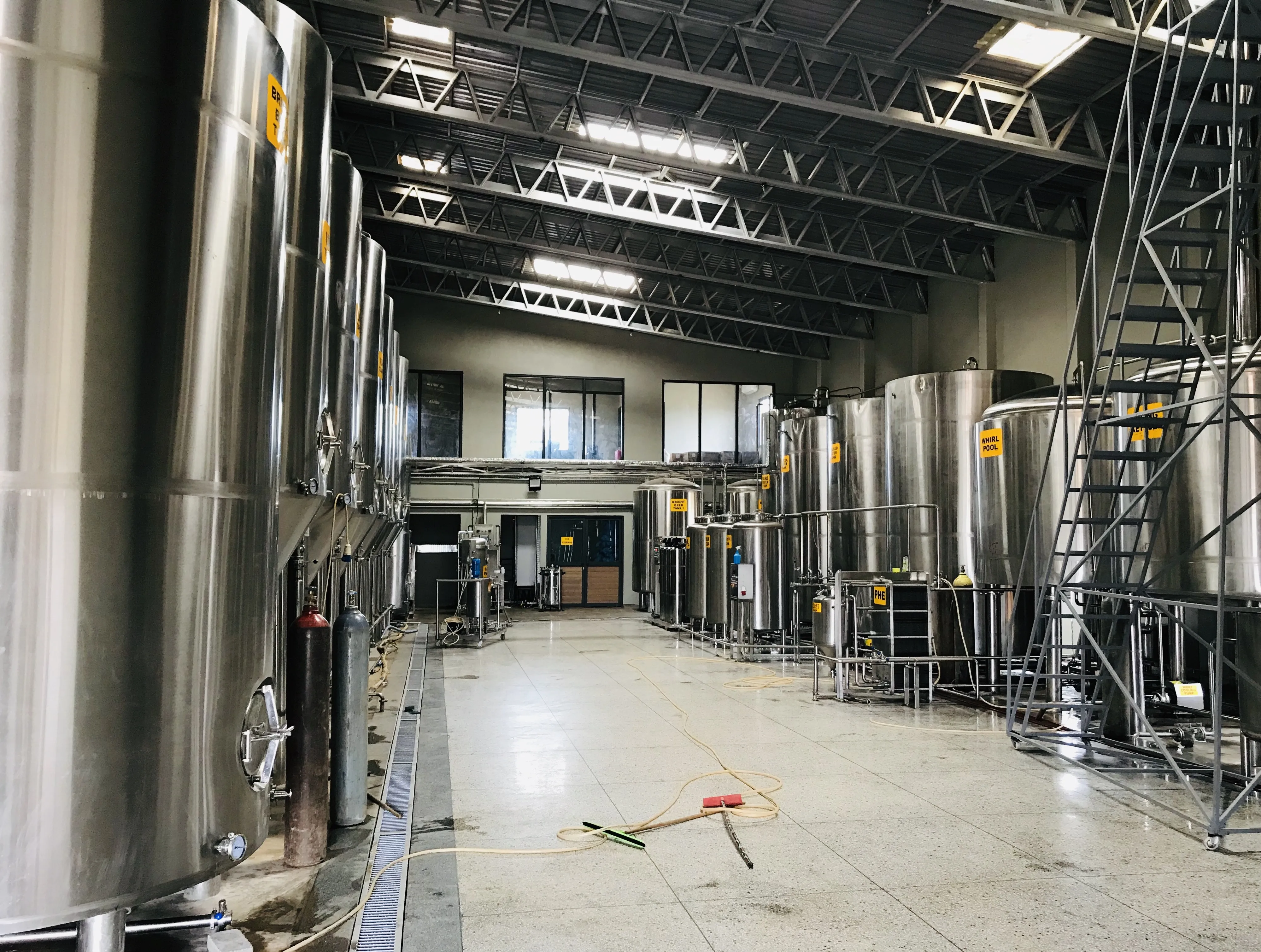

Our 5000l stainless steel brewhouse in Uganda:
Technical guidance:
Our partners:
FAQ
Q1 Can your brewery system make both lager and ale?
A1 Yes. Our brewery system can do this.
Q2 How to do temperature control?
A2 The PLC or digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.
Q3 Is it possible to supply installation in my country?
A3 Yes, our engineers can go to your place and teach your person installation and brewing.
