1500L Beer Brewing Line
FOB Reference Price:Get Latest Price
- Inner stretching membrane and PE paper and outer steel
- frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with - plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged - with wooden box.
3. All items wrapped with soft package for protection.
1500L Pub Brewery Systemt craft beer brewing equipment for sale
HULK 1000L Mircrobrewery equipment craft beer brewing jinan beer equipment for sale is specially customized for users who want to brew 1,000L per batch and 1~2 batches per day.
We plan and design complete medium-sized breweries, all systems can be customized designed with the customer’s input for a defined process.
The Best Solution for Medium-sized Breweries
A whole set of 1,000L Beer Brewing Equipment will include components as below, this article will mainly introduce our 2-Vessel Brewhouse for you.
| 1. 500kg/h Crushing System | 2. 1,000L Mashing system + 2,000L Hot Water Tank |
| 3. 1,000L Fermentation Tank & BBT | 4. PID Control System (Optional: PLC) |
| 5. 3,000L Glycol Cooling System | 6. 100L CIP System |
For more details, please refer to “Relative Products” or contact HULK Guys directly.
| No. | Description | No. | Description |
| 1 | Mash + Lauter Tank | 9 | Drain Pipe |
| 2 | Kettle + Whirlpool Tank | 10 | Wort Pump |
| 3 | VFD Motor&Reducer | 11 | Wort Balance Tank |
| 4 | Top Manway | 12 | Outdoor Condensing Unit |
| 5 | Sight Glass | 13 | Level Tube |
| 6 | CIP Arm | 14 | Plate Heat Exchanger |
| 7 | Vinesse Door | 15 | Yeast Adding Tank |
| 8 | Wort collection&Back flushing pipelines | 16 | Platform with stairs and guardrails |
– Provided with installed pipes, including valves and sensors
– Integrated pump system
– CIP system: separated CIP for tanks to prevent cross product interference
– Customized PID / PLC( HMI touch screen,optional) Control System
– Staircases and platform combine vessels in a compact unit, sectional construction of the walk on surface ensures protection against slipping
– Whole Brewhouse system installed on a complete platform, easy moving, loading&unloading, turnkey solution.
Multi-angle 3d design:
 |  |
| Specification | Description |
| Product Name | 1,000L 2 Vessel Beer Brewing Equipment Brewhouse |
| Beer Output Capacity | 1,000L per batch, 1~2 batches per day |
| Floor Area | 3.50m(L) x 2.08m(W) x 2.7m (H) |
| Brewing Beer Types | Ale, Lager, DIY taste Craft beer, pilot beer, etc. |
| Applicable Voltage | 110V/ 220V /380V/ 415V (adjustable) |
| Power Consuming | 10 ~ 72 kw |
| Heating Method | Steam Heating, Electric Elements Heating, Direct Fire Heating, customized. |

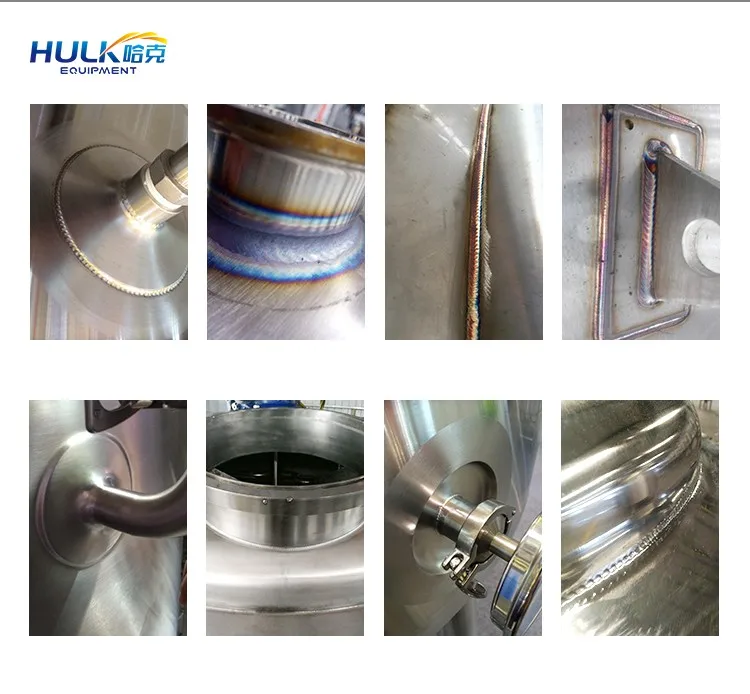

Every Beer Brewing Equipment details is strictly in accordance with the requirements of the drawings, high standards require ourselves to complete the production process with high efficiency.
 |  |  |
| Cleaning Ball | Heating Exchanger | Wort Pump |
 |  |  |
| Hop Filler | Oxygen Filling Device | Whirlpool |
 |  |  |
| Raker | Grain out door | Sight Glass |
 |  |  |
| Sparging Spare Ring | Balance Tank | Yearst Adding Tank |

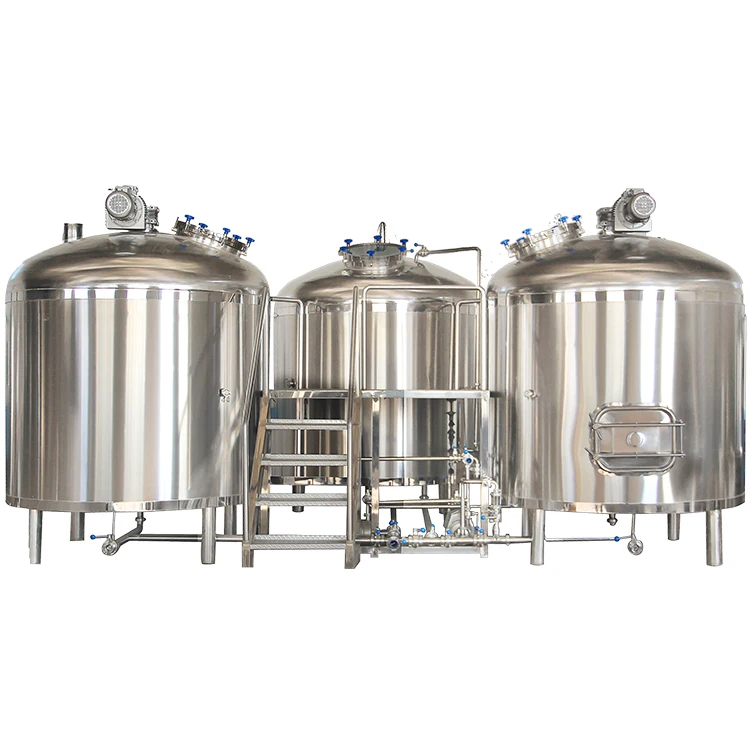

HULK – 1000L Three vessel brewhouse equipment for beer making machine
If you need to pruduce 2000l beer per day, we recomend we match 1000l three vessel brewhouse system, it is very easy for us to brew two batches.
HULK- three vessel brewhouse equipment
(Linear design)
Hulk Equipment provides a full range of services, including design, production, installation and commissioning, warranty and after-sales service.
Projects of three vessel brewhouse equipment are mostly used for personal investment and construction.
Product Description
According to your requirements, we will design the suitable configurations for you.
3D drawing
Hulk- three vessel brewhouse equipment has two types, linear design and triangle design.
You can choose the design according to your preferences and the size of space.
Triangle design
Parameter:
Product name | 1000L brewery equipment |
Material | Sus304 |
Color | Nickel white |
Standard | DIY |
Configurations | 300kg/h crushing system 1000L mash tun, lauter pot, kettle/whirlpool tank 2000l hot water tank 1000l or 2000l fermentation tanks 3000l glycol water tank ,2 pieces 7 P chiller and pumps. PID or PLC control system 100l CIP system |
Operation platform | Adjust |
Accessories | Include |
Product Details

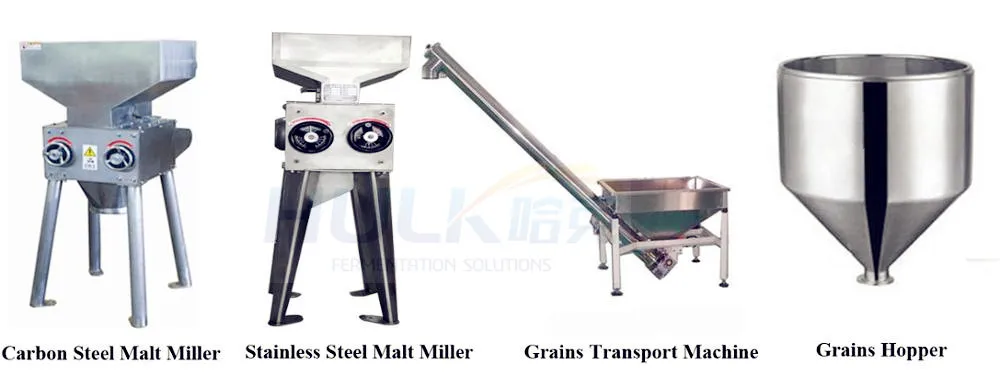

Crushing system – Three vessel brewhouse equipment
Usually, we will match the Flex auger and hopper to transfer the crushed malt to mashing system.
Mashing system – Three vessel brewhouse equipment:
The basic specifacation:
Grain rake with VFD Easy clean and detachable sparging spray ring CIP sparing ball Side mounted grain outdoor with grain chute Multihole wort collect ring(option) Anti-rinser(option) Professional Tangential whirlpool inlet design Balance tank | Indoor condesate system False bottom Glass sight manhole Oxygen filling device Plate heating exchanger Yeast adding tank pumps and pipelines hot water tank |
About the heating method, we have electric tube, steam generator, and direct fire heating method.
You can choose one, then we design it for you.

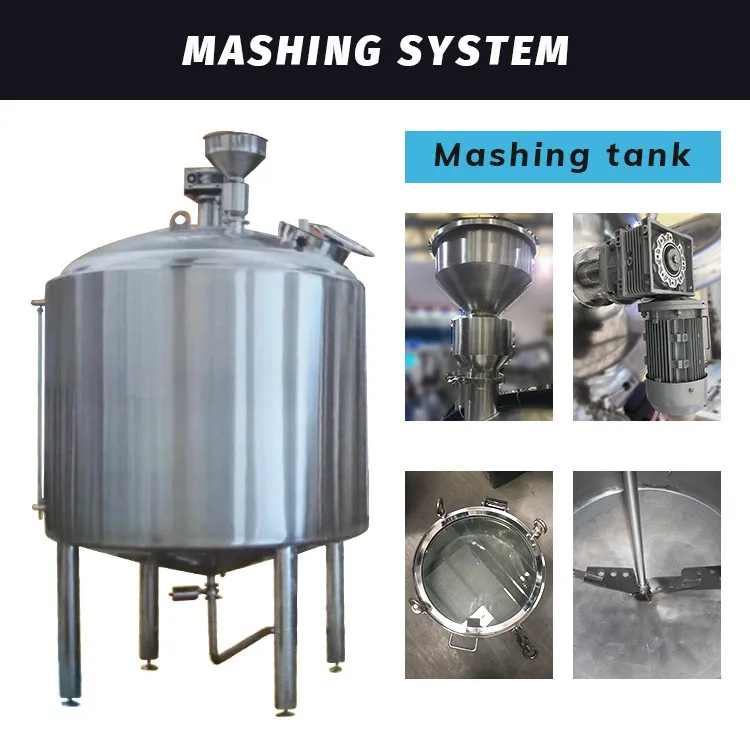

Mash tank:
Equipted with agitator and motor with gear box
Lauter pot
Kettle whirlpool tank:
When you boil the wort of the first batch, you can process second batches’ mashing in the mash tank
And about the hot water tank, we would match 2000l hot water tank to heat water.
Double stage cooling plate heat exchanger:
The chillers operates efficiently and continuously guarantees that glycol water circulates between the fermenter water belt and the mashing system plate heat exchanger.
Through the circulating heat exchange process of ice water, tap water and hot wort, the different cooling zone requirements for beer brewing are realized, and energy efficiency is high.

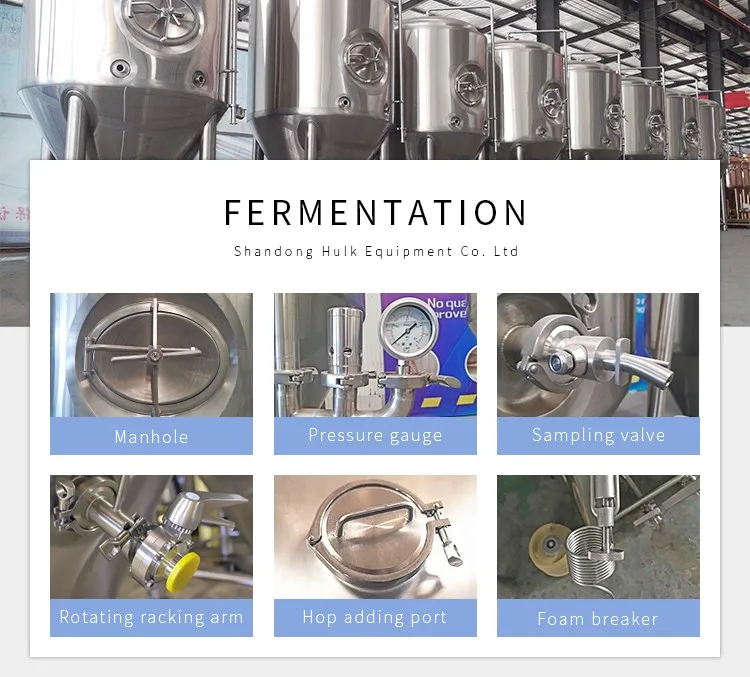

Fermentation system – Three vessel brewhouse equipment
* 1000l fermentation tanks
* 2000l fermentation tanks
Side manhole(Or top manhole) Dry hops adding port Thermowell Relief valve Pressure gauge | Sampling Cleaning ball Thermometer Beer outlet Drain outlet Racking arm |

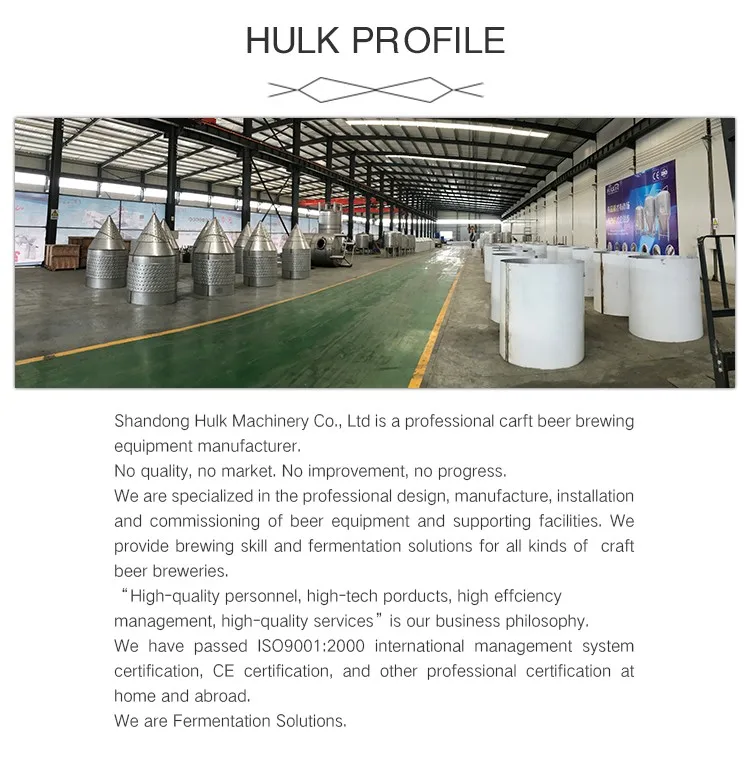

Company Advantage
Specialist manufacturer
We have own factory.
We get CE certification and more Certifications.
We specialize in manufacturing beer brewing equipment.
Quality and price
We have professional purchasing team.
Comparing multiple vendors, choose the best raw materials and the most preferential price. We have skilled worker and strict quality control system, provide the best quality products to our customers.
Convenient transportation
Our company is located in Jinan Shandong, which is the area of origin of craft beer brewing.
We can combine the brewing equipment with beer brewing process very well.
Clear order process
We have clear order process. From mails &calling→→Order confirmed→→Make advance payment→→Workshop produce→→Pay the balance→→ Arrange goods delivery→→Buyers receiving confirmation→→Satisfaction survey.
Quality of service
We will provide photos make our customers to know the order status.
Of course,we welcome our customers to our factory to inspect any time!
Our Service
- Free installation and training
- 3 years warranty
- Design and maintenance for free
- High quality and best price
- inner and outer of the tanks have been mirror polish
- the material can be stainless steel with low price or red copper with nice-looking
- the capacity can be 50L-30,000L
- Engineers available to service machinery overseas
