- Inner stretching membrane and PE paper and outer steel
- frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with
- plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged
- with wooden box.
3. All items wrapped with soft package for protection.
Glycol water tank for cooling conical fermenter brew system
A Complete Set of glycol water System will include below components
Glycol water tank
Cold water tank (for brewhouse capacity upper 1000L/batch)
Glycol water Pump
Cold water Pump (optional with item 2)
Glycol water pipeline
When will you need the glycol system?
· Wort production process, glycol water working together with tap water to cool down the wort from around 98 degree to 7~12 degree. Notes: tap water can flow back to HLT for further using.

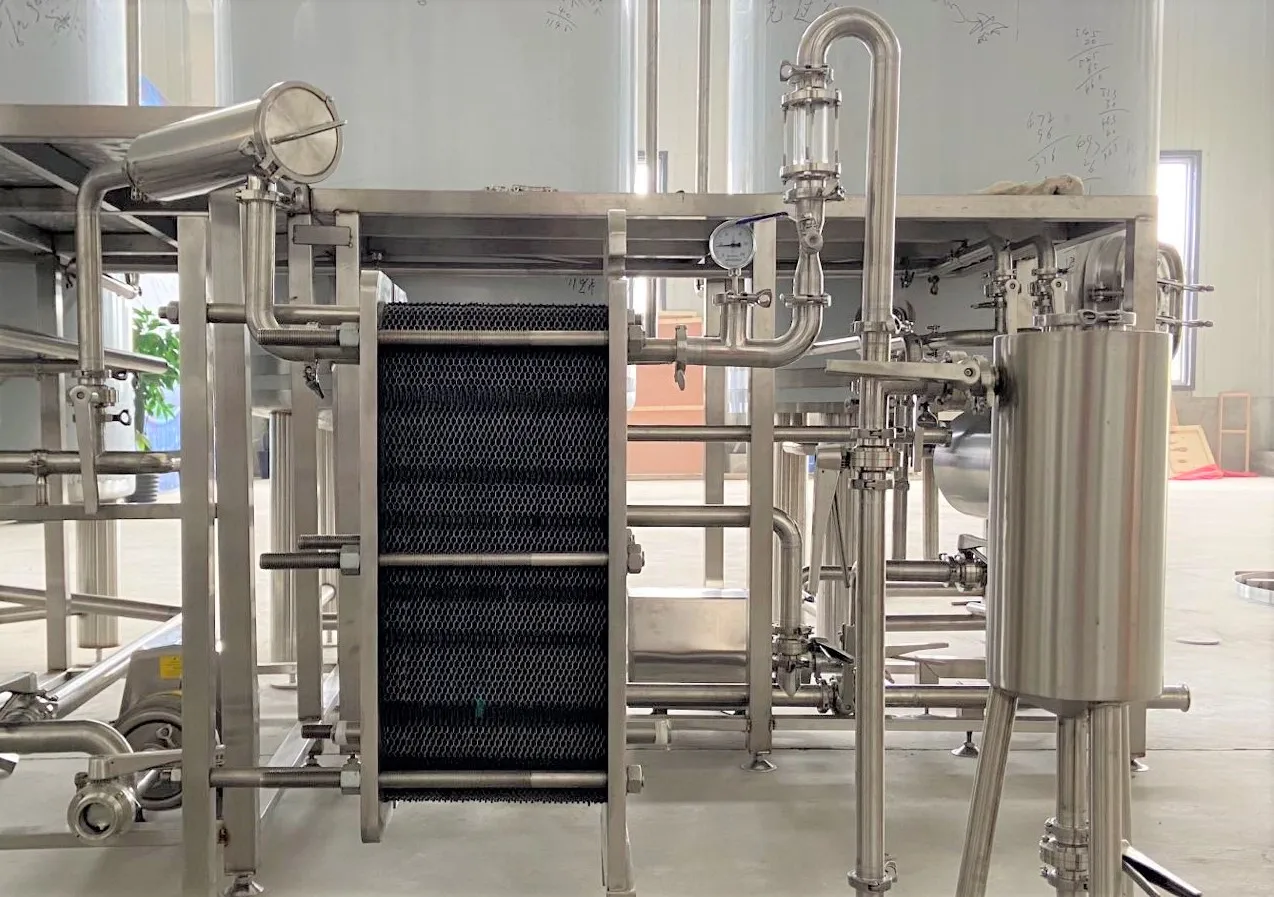

Installed picture of Plate heat exchanger there are 2 types of PHE: A – Single stage (cold water VS wort) B – Double stage (Glycol water VS wort VS tap water)
1000L Commercial Brewery
Packaginga. Wooden case for LCL; b. Plastic film wrapped and iron frame fixing for FCL c. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame d. All accessories and spare parts will be packaged with seperated box. e. After loaded into containers, all equipments will be well fixed to the containers.
