Glycol water tank for cooling conical fermenter brew system

FOB Reference Price:Get Latest Price

Packaging Details
Inner stretching membrane and PE paper and outer steel
frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with
plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged
with wooden box.
3. All items wrapped with soft package for protection.
Contact
Description
Product Details
Company Profile
Contact Us
Description

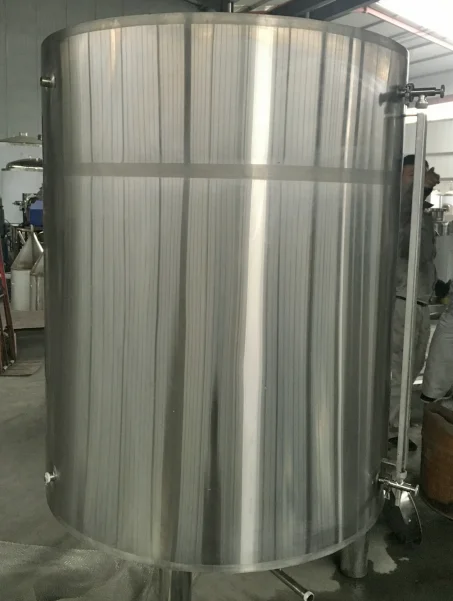

Glycol water tank for cooling conical fermenter brew system

If you want to have reliable temperature control over your fermentation and storage temperatures, we recommend looking into a complete glycol system for your beer. A properly set-up/sized glycol system will allow you to independantly control your fermentation vessels, storage tanks.

No.

A Complete Set of glycol water System will include below components

1

 Glycol water tank

2

 Cold water tank (for brewhouse capacity upper 1000L/batch)

3

 Industrial Chiller

4

 Glycol water Pump

5

 Cold water Pump (optional with item 2)

6

 Glycol water pipeline

When will you need the glycol system?

 1. Wort production:

Going through the plate heat exchanger could be one of your glycol loops or a line from a cold liquor tank that is chilled via your glycol chiller.

2. Fermentation:

During this step, yeast will begin to consume sugars and release heat as a result.

Like an anxious driver flooring the gas pedal, this can lead to overheating during the process.
HULK glycol system will help put on the brakes, letting you have better control of internal temperatures and fermentation as a whole, and giving you more quality control over your beer.

· Wort production process, glycol water working together with tap water to cool down the wort from around 98 degree to 7~12 degree.
Notes: tap water can flow back to HLT for further using.

Installed picture of Plate heat exchanger
there are 2 types of PHE:
A – Single stage (cold water VS wort)
B – Double stage (Glycol water VS wort VS tap water)

All our Beer brewing Equipments, are equipped with high quality sanitary parts, specially customized for each of our customer.

You want your brewhouse to be special? Don’t hesitate, contact HULK guys now for your customized brewery solution!

To save on costs, you’ll want to make sure that you use a proper mix of glycol and water when setting up your cooling system.

Too much glycol will leave you with a freezing point far below what’s necessary while wasting funds on refrigerant.
Too little, and you risk the entire system freezing, leaving the fermentation process to proceed unchecked!
Generally, depending on the total effective volume of tank, we recommend the propotion of glycol and water is 1:3, which can ensure the lowest temperature going to -20 degree without freezing.

Brewing beer is both rewarding and fun, especially if you enjoy designing systems that work at peak efficiency.

Make sure you follow proper procedures when working with cooling systems, and use HULK glycol system to keep your equipment working at top performance.

This will have you worrying less about the process and focusing more on brewing your best craft beers!

100L homebrew

200L Beer Brewery

500L Micro Brewery

750L Beer Brewhouse

1000L Micro Brewery

15BBL Beer Brewery

1000L Commercial Brewery

500L-2000L Beer Fermenter

100L-2000L Brite Beer Tank

Packaging

a. Wooden case for LCL;
b. Plastic film wrapped and iron frame fixing for FCL
c. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
d. All accessories and spare parts will be packaged with seperated box.
e. After loaded into containers, all equipments will be well fixed to the containers.

Pre-sale service:



1. Free of making offers, craft and technical guidance.
2. We can also make customized products according to customer’s needs.



After-sale service:


1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can
appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Product Details

Glycol water tank for cooling conical fermenter brew system



Company Information

Glycol water tank for cooling conical fermenter brew system

Product Description

Glycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew system

Functions of glycol water tank:

1. For cooling the hot wort together with tap water. We call this two-phrases cooling process.

2. For reducing the temperature of fermenter and brite beer tank automatically.

As ususl, we recommend to use glycol water tank for no more than 1000L beer brewing equipment. And we always supply the glycol water tank as following:

BrewhouseGlycol water tank
100L 100-150L
200L500-600L
400L1000l-1200L
500L1500L
1000l3000L

 PS: The configuration can be customized accoring to customer’s request

Related products:

Glycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew system

Accessories:

+ Top/side manhole                                          + CIP Pipe with CO2 inlet port

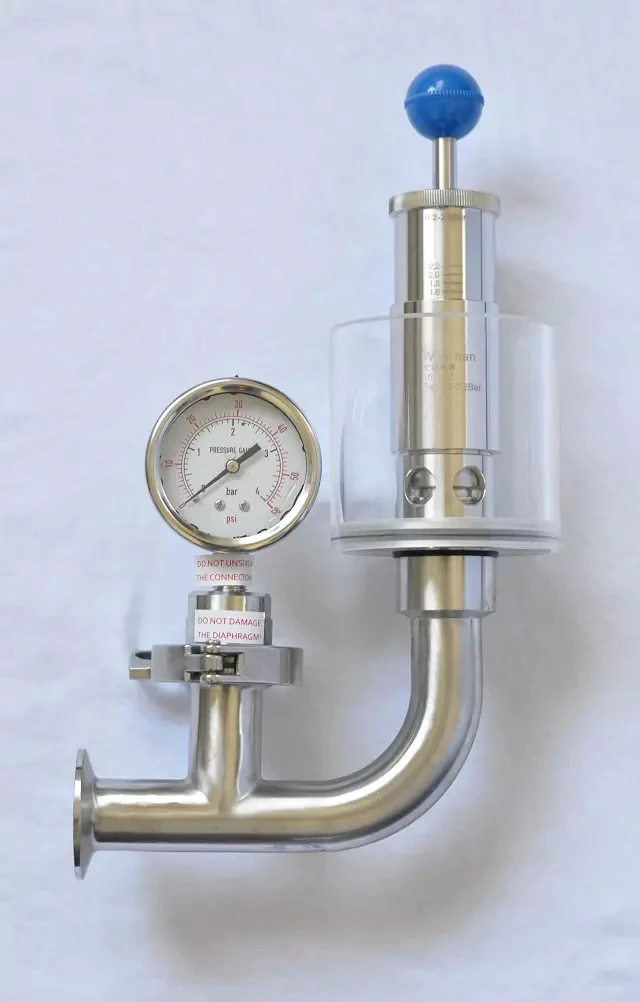

+ Pressure regulating valve                              + Insulation
+ Pressure gauge                                             + Glycol water outlet and inlet

+ Rotational spray ball                                      + Temperature probe
+ Solenoid valve                                               + Sample valve
+ Drain port                                                      + Carbonization port

Glycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew system
Pressure gaugeSolenoid valveCarbonization port
Glycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew systemGlycol water tank for cooling conical fermenter brew system
Sample valveside manholePressure regulating valve

Our Services

Pre-sale services:

⇒1.Provide quotation proposal /offers,3D and CAD layout drawing and detail specification, craft and technical guidance of beer brewing system, cost and prospects analysis and so on.
⇒2.We can provide company’s qualification certification and customers reference you need.
⇒3.We ca n also make customized products according to customers’ need

Glycol water tank for cooling conical fermenter brew system
After-sale service:

⇒1.We provide long-term after-sale service.
⇒2.Owing to the quotation of our equipment is FOB price which excluded charges of door to door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provide by your party. Or you can send you technician to our company to learn.
⇒3.Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online to solve the problems.
⇒4.The main equipment has 3 years warranty auxiliary engine and accessory has one year warranty.

Glycol water tank for cooling conical fermenter brew system

Packaging & Shipping

1. Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.

2. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.

3. All spare parts, accessories and fittings will be packaged with wooden box.

4. All items wrapped with soft package for protection.

 Glycol water tank for cooling conical fermenter brew system

Company Profile

Contact Us

    Contact Us

    * Required

    HULK Equipment is a beer brewery equipment manufacturerthat specializes in R&D, sales and after-sale service. Over 50,000 square feet plant;

    Contact Info
    • Address:
      No.12-2, Jiyang Industrial Park, Jiyang District, Jinan, Shandong, China
    • Mail:
      info@hulkbrewery.com
    • Phone number:
      +86-15628771777

    找到我们:

    Facebook page opens in new windowTwitter page opens in new windowYouTube page opens in new windowLinkedin page opens in new windowInstagram page opens in new window
    Recent News
    • test news head
      9月 9, 2021
    • HULK Brewtech | New Release of 600L Beer Brewing Equipment
      7月 6, 2021
    • HULK Brewtech attended Developing Brand Baverage Equipment Exhibition
      6月 19, 2021
    分类
    • Events
    • News
    Copyright @ Shandong Hulk Equipment Co., Ltd
    • Product
      • Nano & Pilot Brewing System
        • 100L Pilot Beer Brewing System
        • 1BBL Pilot Beer Brewing System
        • 200L Nano Brewery System
        • 200L P Type Nano Brewery System
      • Beer Brewing System
        • Micro Brewery Equipment
        • Brewpub Equipment
        • Commercial Beer Brewing Equipment
        • Industrial Beer Brewing System
        • 500L 1000L Beer Brewing Equipment
        • 5BBL 7BBL 10BBL Pub Brewery Equiment
        • 15BBL 20BBL 30BBL Commercial Beer Brewing System
        • 1000L-5000L Industrial Beer Brewing System
      • Brewhouse Sytem
        • 10BBL 2 Vessel Design Brewhouse Pub Brewery
        • 500L 1000L 3 Vessel Combined Design Brewhouse
        • 15BBL 3 Vessel Brewhouse For Commercial Brewery
        • 2000L 20BBL 4 Vessel Brewhouse For Micro Brewery
        • 10BBL Pub Brewery System
        • 15BBL PUb Brewery System
        • 1000L Hotel Brewery System
        • 1500L Beer Brewing Line
      • Fermentation Tank
        • 500L 1000L Beer Fermentation Tank
        • 300L 3BBL Beer Unitank
        • 3000L 30BBL Beer Fermenter
        • 5000L 10000L Beer Fermentation Tank
        • 1000L 2000L Beer Fermenter
        • 500L Top Flange Manhole Fementer
        • Large Beer Fermentation Tank
        • Beer Fermenter For Beer Plant
      • Brite Beer Tank
        • 500L 1000L Brite Beer Tank
        • Horizontal Brite Beer Tank
        • 1000L 2000L Brite Beer Tank
        • 500L 1000L Horizontal Brite Beer Tank
        • 1000L 2000L Horizontal Brite Beer Tank
        • 1000L Horizontal Bright Beer Tank
        • 1000L Brite Beer Tank
        • 2000L Horizontal Brite Beer Tank
      • Kombucha Equipment
        • Boil kettle + Hot Water Tank
        • Boil kettle
        • First Stage Fermentation Tank-1
        • First Stage Fermentation Tank-2
      • Glycol Cooling System
        • Glycol Water Tank
        • Cold Water Tank
        • Enerfy-save Chiller
      • Brewery Auxiliaries
        • Beer Keg Filling Machine
        • Beer Keg Washing Machine
        • 4 Heads Semi-Auto Bottle Filler & Capper
        • 6 Heads Semi-Auto Bottle Filler & Capper
        • Aluminum Beer Can Filling Machine
        • Can Sealing Machine
        • Malt Miller
        • Steam Generator
      • CIP Cleaning System
    • About us
      • Certificate
      • Case
      • Video
    • Our Services
      • QC
      • Turnkey Solutions
      • Technical Support
      • FAQ
    • News
    • Testimonials
    • Contact
    Navigation
