The Mash/Lauter Tun Kettle tank in a moved platform. The fermenting tanks, control system, cooling system, ice water tank in the other moved platform.
Mini Beer Brewery System
FOB Reference Price:Get Latest Price
Packaging Details
- Inner stretching membrane and PE paper and outer steel
- frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with - plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged - with wooden box.
3. All items wrapped with soft package for protection.
Description
Drawing
Product Details
Company Profile
Contact Us
Description
100L Beer Brewing Kit Mini Beer Brewery System
100L Homebrew kit is very popular for personal hobbies, mini pub, tapbeer suppliing companies.
Limited floor area, competitive price, high quality brewing beer, trust that is just the way you expect to go!
 |  |
-Mashing System
1.Inner-Jacket (SUS304), TH=3.0mm, pickling&passivating treated;
2.External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate
3.Atmosphere pressure lid, TH=3.0mm
4.Tanks’ Insulation layer: PU-thickness= 50mm.
5.100% high precision TIG welded joints
6.Strong universal wheels (with shaft)
-Detailed Pictured
 |  |  |
Brewhouse from view | Brewhouse Back view | Sieve |
 |  |  |
VFD Wort Pump | Electric elements | Tangent Whirlpool |
 |  |  |
Y type Hops filter | Plate Heat exchanger | PID Controller |
 |  |  |
Grain out door | Sight Glass | Butterfly Valve |
-Fermentation System
1.Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;
2.External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
3.Top flange Manway
4.Oval head&60°conical bottom, thickness: 3mm.
5.Insulation layer: PU-thickness= 50mm.
6.100% high accuracy TIG welding.
7.Design pressure 0.3MPa(43.5psi); Working pressure 0.15Mpa(21.7psi).
2.External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
3.Top flange Manway
4.Oval head&60°conical bottom, thickness: 3mm.
5.Insulation layer: PU-thickness= 50mm.
6.100% high accuracy TIG welding.
7.Design pressure 0.3MPa(43.5psi); Working pressure 0.15Mpa(21.7psi).
 |  |
-Detailed Pictured
 |  |  |
Fermenting system | Top Flange Manway | Sampling Valve |
 |  |  |
Solenoid Valve | Pressure Gauge & PRV | Ball Valve |
Drawing
Product Details
Product Description
Product show

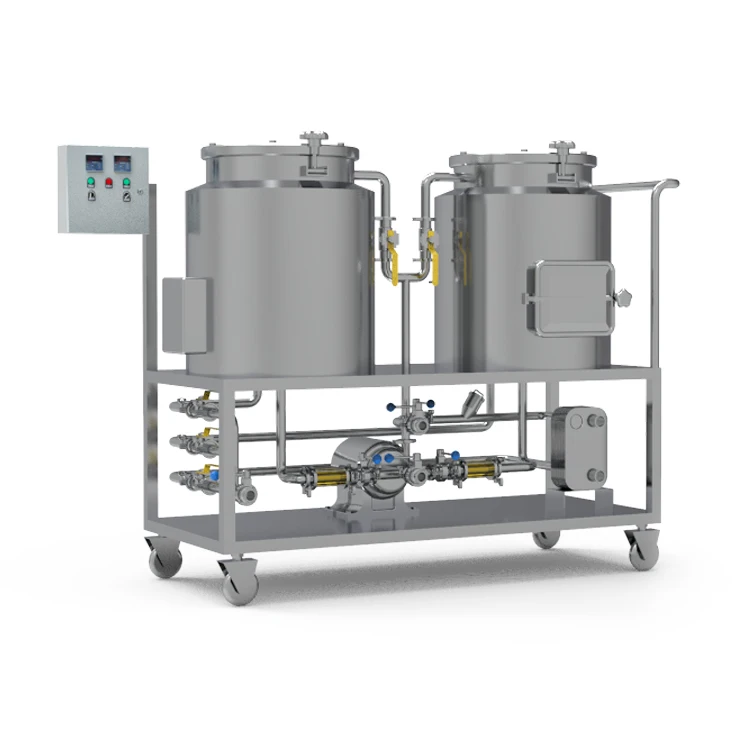

Our 100l 2 vessel pilot homebrew equipment have complete sytem( In moved platform).
Advantages
for 100L pilot homebrew equipment:
1.Easy to operate: include all the kits to start to brew, offer instruction manual.
2. Easy to clean: Equip with CIP system and spray cleaning ball.
3. Compact: floor space only 8-15 sq.m.
4. Movable: Equip with movable working platform
5.low price: super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.
6. Beer: Can brew all kinds of beer, such as barley beer, wheat beer, bight beer, black beer, ect.
7. Warranty: Main machine 3 years’ warranty, auxiliary equipment one year’s warranty, all life service.
8. Technology: Fermentation-Double jacket conical fermenter simultaneous brewing, perfect welding.
Equipments Components
of pilot homebrew equipment:
Miller: Crushing system usually includes Malt Miller Particle adjustable rolling crusher |
Brew house: The mashing system is composed of mash tun, lauter pot, kettle, whirlpool, hop back, hop filter, plate heat exchanger, wort pump and pipeline, etc. |
Fermentation:The fermenting system equipped with safety valve, sample valve, temperature probe, temperature sensor, racking arm, hop adding port, pressure relief valve, cleaning ball, wort inlet port, beer outlet port, drain outlet port and more accessories. |
Cooling Unit: Cooling System mainly has Glycol water tank also named Ice water tank, Cooling unit, Ice water pump, cooling pipes, etc. |
Controlling Unit: Brewhouse/fermentation tanks/chiller/glycol water tanks temperature control. PID control system, PLC control system(available) |
We have more incredible selection! We can desiign your equipment according your reqirement.
Mashing system – 100l pilot homebrew equipment
Fermenting system – 100l pilot homebrew equipment
Control system – 100l pilot homebrew equipment
* PID semi-automatic controller: Simple operation, easy maintenance.
* Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control allfermenters / BBTs / glycol tanks temperature, chillers soft start and so on.
* Band: schneider
* PID semi-automatic controller: Simple operation, easy maintenance.
* Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control allfermenters / BBTs / glycol tanks temperature, chillers soft start and so on.
* Band: schneider
Refrigeration system – 100l pilot homebrew equipment
Glycol tanks used for wort cooling and all fermenters lagers cooling, this works together with two stages plate heat exchanger.
The refrigerant can be made by the mixture of 95% and above that glycol or food grade alcohol and water, the mixing ratio is 1: 3, that can reduce the water freezing point and supply the cooling need uninterruptedly from fermenting system.
Beer brewing process
Crushing system
Firstly, we pour the water to make malt resurgence, we must slowly pour the malt to the miller, we must control the degree of crushing.
Transporting hot water
Mashing:
The ratio of material to water is 1:4. Only 30%-50% of the raw materials are wheat malt, and the rest are barley malt.
We transfer the hot water from the kettle to the mash/lauter tun and fully soak the comminuted grain at 55 degrees or 65 degrees.
Filtration:
The wort is filtered into the tank through a milling sieve plate at the bottom of the mash/lauter tun.
We finally can get clear wort. We can watch the wort by sight glass.
Transporting wort
Kettle
After a few hours, what we have to do is add different hops in a specific order at different times. It stays in the pot for 1-2 hours.
The purpose of boiling is to stabilize the wort ingredients.
Fermentation
We only need to add yeast and wait, however some kinds of beer need to add hops during the fermentation.The fermenting time varies with the type of beer, usually between 12 and 21 days.
Detailed Images
Pipeline
Tun Inside

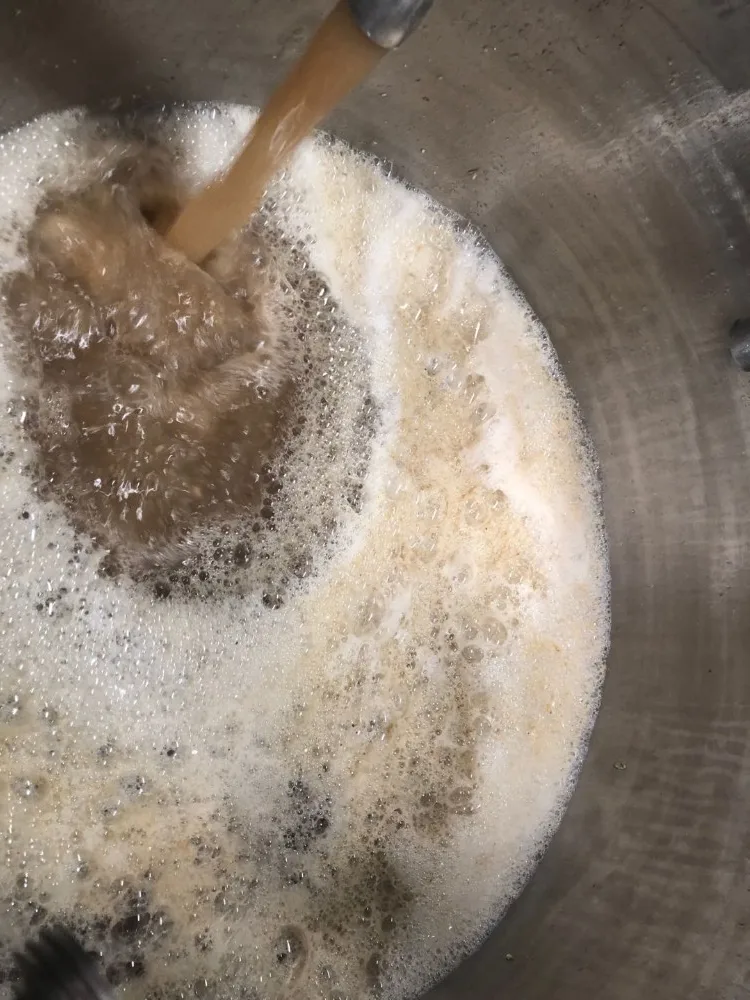

Electic tube is heating hot water(bubble).
Our Service& Partner
Packing & Delivery
Packaging | |
Size | According to the configuration |
Weight | According to the configuration |
Packaging Details | package according to your requests. |
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers
Our Company
Shandong Hulk (click) Equipment is the number one manufacturer of beer brewing equipment and micro brewery equipment.
We have our own factory, high quality stainless steel is used in our production. Our quality checks make sure that we provide the best to our overseas clients.
We have several stuff for after-sale service support insuring that you will be well looked after.
