Steam Generator
FOB Reference Price:Get Latest Price
Packaging Details
- Inner stretching membrane and PE paper and outer steel
- frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with - plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged - with wooden box.
3. All items wrapped with soft package for protection.
HULK Beer Brewing Equipment
Description
Product Feature
Product Details
Company Profile
Contact Us
Description
Product Feature
| 1、 | Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate The water volume of this series of product is lower than 50L within the scope of exemption from applying for a boiler use certificate, that is, there is no need to apply for a boiler use certificate. A built-in steam separator is installed inside the furnace pipe, which solves the difficult of steam with water and ensures high quality of the steam. |
| 2、 | Fully Automatic Computer Welded LCD Intelligent Electronic Control System Automatic control operating system, computer circuit board welding are welding operation with respect to the traditional manual welding more stable and reliable. All operating status can glance at the LCD screen. You can observe in the display to the boiler heating pipe work state, the state of the boiler water level, steam pressure state level, pump operation status, fault alarm status, timing control four time periods of more convenient, allowing you to keep abreast of boiler operating conditions , use more confidence; |
| 3、 | Group Control according to demand, more energy efficient The boiler can be grouped control, the use of steam demand can be activated according to the corresponding heating group, the purpose of energy-saving system; |
| 4、 | The Use of High-quality Core Components a.High-quality electric heating pipe: electric heating pipe with high-quality thick-walled 316L stainless steel pipe production, service life than the commonly used 304 stainless steel tube 30%, high temperature magnesium oxide powder and sealing materials are imported quality, high temperature up to 900 ℃, Heating tube life; In addition, the electric tube and the furnace and the flange connection, conducive to replacement, repair and maintenance; b.High-quality electrical accessories: electrical appliances with well-known domestic electrical appliances, safe and reliable c.High-quality pipe connections: all internal pipeline equipment and instrumentation connections are connected by brass, corrosion and rust; |
| 5、 | Multiple Safety Interlock Protection Boiler installed with over-pressure protection such as safety valve and pressure controller etc that are examined by Boiler Inspection Institution, to prevent the boiler from explosion caused by over-pressure; Same time, it has low water level protection, and the boiler would stop working automatically when water supply stops, preventing boiler from dry heating and leading to phenomenon of damage or even burn out in electrical heating components. Leakage protection makes operating personnel and equipment security more protected, so that boiler would clear the circuit automatically even there is short circuit and leakage because of improper boiler operation, and ensure the safety of operation personnel and control circuit timely. |
| 6、 | Professional Equipment Quality Testing -More Secure All products within the weld after X-ray inspection and water pressure test after passing the factory, no hidden danger; |
| 7、 | Extremely Easy to Install and Use Before leaving factory, products should pass strict debugging. Users only need to connect the power and water source, and press the start button to enter automatic running state without complicated installation. |
| 8、 | Scientific Design and Attractive Appearance Use cabinet type scientific design style, the internal designed structure is reasonable, the repairs and maintenance are extremely convenient. The boiler shell uses one time molding process of CNC cutting and CNC folding with fine workmanship; the shell surface is treated by high-temperature spray, thus, it is durable and has an elegant appearance. |
| 9、 | Use Electricity Is More Environmentally Friendly and More Economical Electricity energy has no pollution, and is relatively more environmentally friendly compared to other fuels. Using off-peak power could save operating cost of equipment greatly, and is the optimal choice for energy saving and environmental protection. |
Product Details

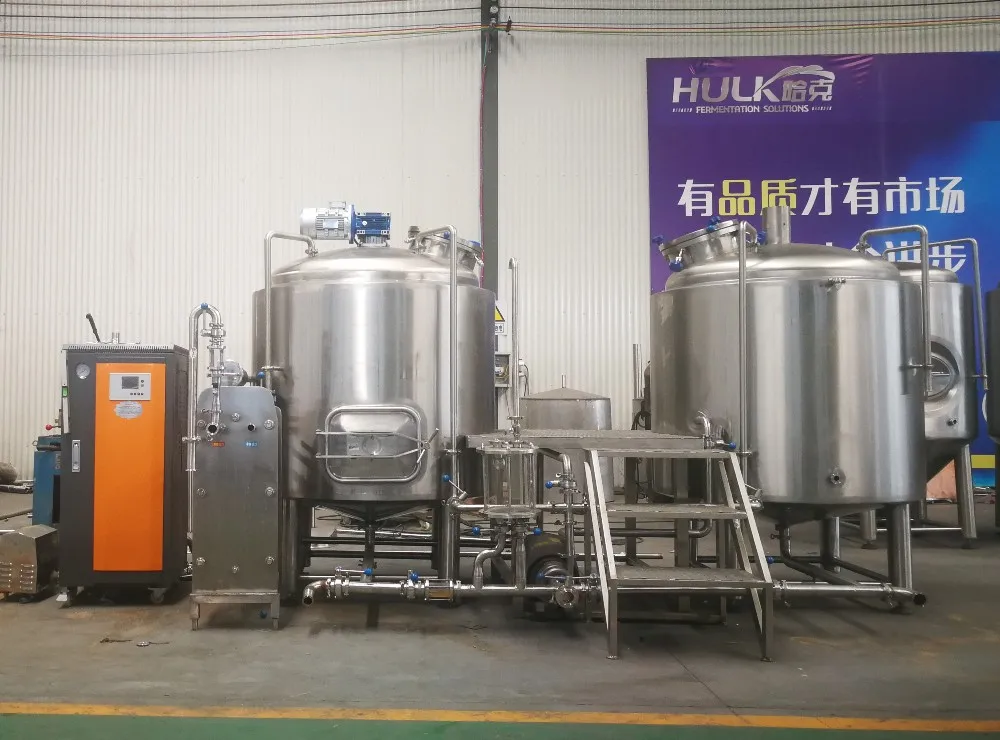

Steam boiler for beer making machine
Product Description
According to different size of beer brewing equipment, we suggest the suitable heating method.
About the Steam boiler, we have electric steam boiler, gas steam boiler and Oil steam boiler.
